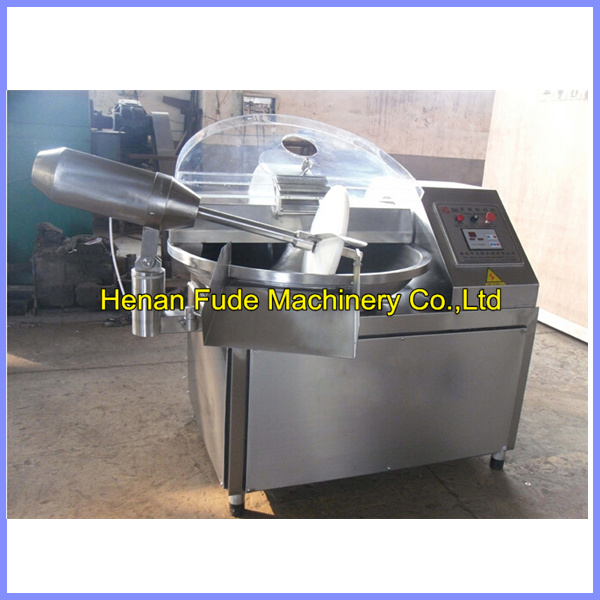

New functional meat chopper mixer,meat chopping machine,meat bowel
cutter
Automatic chopping mixer uses high speed rotating knife to cut the
pieces, broken meat, fat and other main material into ground meat
or meat mud, at the same time mixing with other materials such as
water accessories to stir together into a uniform stuff.the knife
has high rotation speed shorten the running time, reduce material
heat, and keep the stuffing natural color.
The automatic chopping mixer machine is widely used in meat,
sausage,fish, vegetables , seafood , flavoring, and so on.
Specification :
Model | FDZB-80 | FDZB-80(frequency) |
capacity | 60-70kg/barrel | 60-70kg/barrel |
knives | 6 | 6 |
Shaft speed | 1800/3600r/min | 300-3600r/min |
Bowel speed | 7/16r/min | 7/16r/min |
Power | 13.98kw | 10.48kw |
Dimension | 1900*1350*1300mm | 1900*1350*1300mm |
Weight | 800kg | 800kg |
control | Dual speed | Frequency |
Features :
1. Use high quality transducer and variable frequency motor, shaft
speed 300-3600r/min adjustable.
2. Small noise, high efficiency.
3. Material use SUS304, durable and easy clean.
4. Temperature, time, rotating can be set, control cutting time.
5. Cutter and bowel space is 1.0-1.5mm, make sure cutting effect.
6. Cutter, bearing ,transducer, touch screen, controller, etc use
imported.
7. The dual speed pot can coordinate with any rotary speed of the
cutting knife, cutting time short.
8. With discharging device, discharge clean.
9. Electrical components with water proof device, good sealing.
Specification :
Model | FDZB-200 |
Capacity | 100-150kg/barrel |
volume | 200L |
Shaft speed | 1800/3600r/min |
Knives | 6 |
Bowel speed | 7.5/10r/min |
Discharging speed | 82rpm |
Weight | 4.8T |
Power | 62.27KW |
Dimension | 2480×2080×1950mm |
