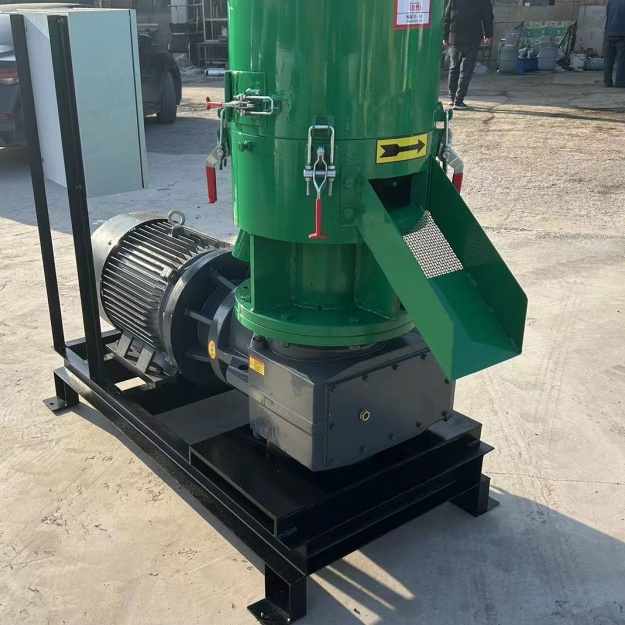

Pellet processing machine
type: AFS-KL350/450/550/650/750
Anyang Fashun Machinery Co.,Ltd
bob@hnfd-machine.com
contact us
This pellet machine can process leaves, straw, sawdust, fruit shells, coconut shells, waste cloth, waste
leather, plastic, bean dregs, bran, etc. into granular products, improving the secondary utilization value
of materials and bringing objective economic benefits.
This is a premium multi-material type compression granulator,
widely applicable in the fields of animal husbandry, environmental
protection, and waste recycling, etc.,
| Model | AFS-KL350 | AFS-KL450 | AFS-KL550 | AFS-KL650 | AFS-KL750 |
| Generator | 22KW | 37KW | 75KW | 90KW | 132KW |
| Three Phase | 380v, 50hz | 380v, 50hz | 380v, 50hz | 380v, 50hz | 380v, 50hz |
| Die Diameter | 500-800mm | 500-800mm | 500-800mm | 500-800mm | 500-800mm |
| DieHole Specification | 6/8/10mm Std. 8mm | 6/8/10mm Std. 8mm | 6/8/10mm Std. 8mm | 6/8/10mm Std. 8mm | 6/8/10mm Std. 8mm |
| Capacity | 2-3 tons/day | 3-5tons/day | 1-1.5ton / h | 1.5-2ton / h | 2-3 ton / h |
| Packing Size | 1250*510*1500 | 1450*800*1470 | 1750*850*1700 | 1770*1770*1020 | 2100*1250*2000 |
1. Livestock feed products: Various soybean meal, bran, corn and
wheat straw, as well as other daily animal feed can be made into
pellets for storage. The products can be sold or used for
self-feeding of animals, making it a good choice for urban farms.
2. Environmental protection products: Recycled waste plastics, old
clothes, sponges and other daily waste items can be made into
recycled pellets to increase their secondary value and generate
more profits.
3. Solid fuel products: Sawdust, peanut shells, coconut shells,
bamboo, straw and other wood or fiber materials produced in daily
agricultural production can be made into pellets as heating
materials for winter fireplaces, bonfires and other places.
4. Application of high-value products: Corn cob pellets, animal
feed pellets, recycled plastic pellets, leather scraps pellets,
these products can be used in animal husbandry, industry,
environmental protection, chemical industry, providing secondary
utilization value of materials and generating good economic
benefits.
